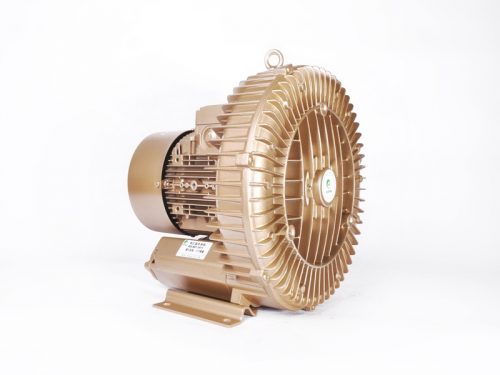

GHBH 003 12 1R7 2.2kW(3hp) Ring Air Blower

Product Name: Single Stage Single Phase Ring Blowers and Vacuum Pumps
Model Number: GHBH 003 12 1R7
Color: Golden/Silver
Place of Origin: Guangdong, China
Brand Name: GOORUI
Material: ADC12 Aluminium Alloy
Motor Material: 100% Copper Coil
Frequency: 50/60 Hz
Power Source: Electric Blower
Pressure: High Pressure
Feature: Oil-free, Maintance-free, Low-noise, Low-vibration, Energy-saving
Usage: High suction air and high pressure blowing
Certification: CCC, CE, SGS, TUV, RoHS, ISO, ATEX, UL, certification approved
Customized Support: OEM, ODM

Description

GHBH 003 12 1R7 2.2KW

1 file(s) 461.35 KB

Download

Frequency	50 (Hz)	60 (Hz)
Rated Power	2.2(kW)	2.55(kW)
Rated Voltage	200-240 (V)	220-275 (V)
Rated Current	12.8 (A)	12.8 (A)
Max Airflow	318 (m3/h)	376 (m3/h)
Max Vacuum	-190 (mbar)	-190 (mbar)
Rated Pressure	190 (mbar)	200 (mbar)
Sound	72 dB(A)	74 dB(A)
Weight	30 (kg)	30 (kg)

GOORUI Side channel blowers are maintenance-free:
·External, permanently lubricated bearings
·Contactless rotating impellers
·Fan-cooled motors

GOORUI Side channel blowers are user-friendly:
·Weight-optimised design through aluminum pressure casting parts
·Possibility for a vertical or horizontal installation
·Suitability for converter operation

GOORUI Side channel blowers are environmentally friendly:
·Oil-free operation
·Low energy requirement
·Low noise emission

GOORUI Side channel blowers can be used world-wide:
·50/60Hz voltage range motors of the Iso class F
·Protection type IP55 with an integrated thermal protection switch (standard)
·CE, TUV, RoHS, CCC and ISO9001 certifications

Our advantages:
·A large selection of sizes
·Extensive accessoires
·100% check prior to delivery
·Spare parts are in stock
·Service in our facilities or on site
·Fast and reliable delivery
