Product Name: Dual Stage 3 Phase Ring Blowers and Vacuum Pumps
Model Number: GHBH 034 36 2R9
Color: Golden/Silver
Place of Origin: Guangdong, China
Brand Name: GOORUI
Material: ADC12 Aluminium Alloy
Motor Material: 100% Copper Coil
Frequency: 50/60 Hz
Power Source: Electric Blower
Pressure: High Pressure
Feature: Oil-free, Maintance-free, Low-noise, Low-vibration, Energy-saving
Usage: High suction air and high pressure blowing
Certification: CCC, CE, SGS, TUV, RoHS, ISO, ATEX, UL, certification approved
Customized Support: OEM, ODM

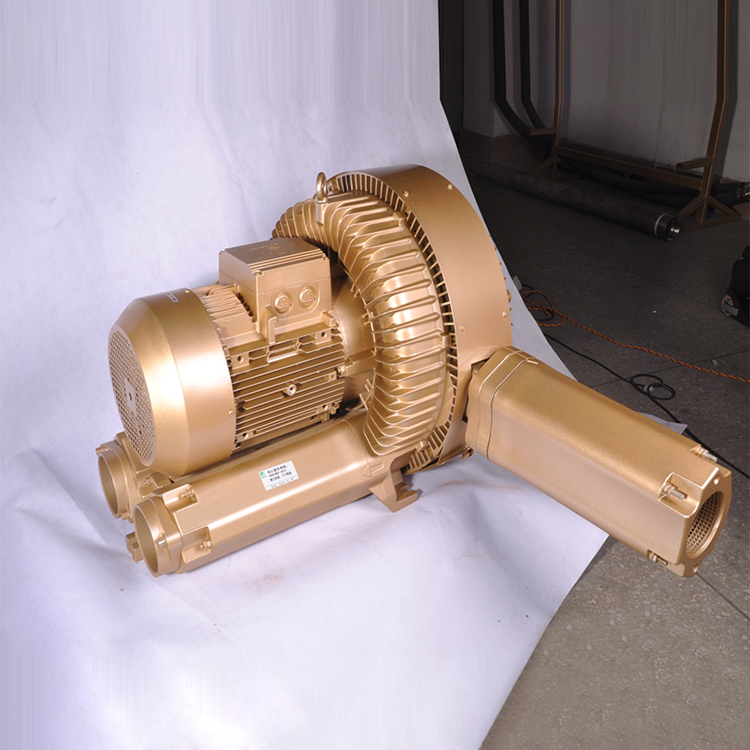

GHBH 034 36 2R9 25kW(34hp) Regenerative Blower
Description
GHBH 034 36 2R9 25.0KW
Frequency | 50 (Hz) | 60 (Hz) |
Rated Power | 25.0 (kW) | 29.0 (kW) |
Rated Voltage | 345-415△600-690Y (V) | 380-480△660-720Y (V) |
Rated Current | 52.0△/30.0Y(A) | 52.0△/30.0Y (A) |
Max Airflow | 1110 (m3/h) | 1310 (m3/h) |
Max Vacuum | -440 (mbar) | -440 (mbar) |
Max Pressure | 590 (mbar) | 540 (mbar) |
Sound | 74 dB(A) | 84 dB(A) |
Weight | 211 (kg) | 211 (kg) |
GOORUI Side channel blowers are maintenance-free:
·External, permanently lubricated bearings
·Contactless rotating impellers
·Fan-cooled motors
GOORUI Side channel blowers are user-friendly:
·Weight-optimised design through aluminum pressure casting parts
·Possibility for a vertical or horizontal installation
·Suitability for converter operation
GOORUI Side channel blowers are environmentally friendly:
·Oil-free operation
·Low energy requirement
·Low noise emission
GOORUI Side channel blowers can be used world-wide:
·50/60Hz voltage range motors of the Iso class F
·Protection type IP55 with an integrated thermal protection switch (standard)
·CE, TUV, RoHS, CCC and ISO9001 certifications
Our advantages:
·A large selection of sizes
·Extensive accessoires
·100% check prior to delivery
·Spare parts are in stock
·Service in our facilities or on site
·Fast and reliable delivery
