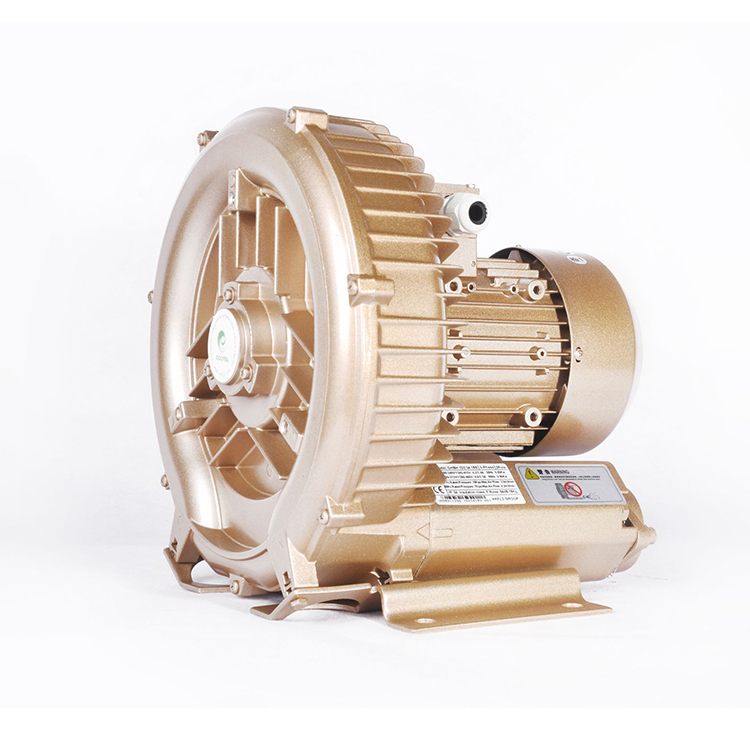

400W(0.5hp) Small Ring Blower (GHBH 0D5 34 AR2)

If you have any enquires, do feel free to contact us. Thanks !

Get A Quote

400W(0.5hp) Small Ring Blower (GHBH 0D5 34 AR2)

Product Name: Single Stage Three Phase Ring Blowers and Vacuum Pumps
Model Number: GHBH 0D5 34 AR2
Color: Golden/Silver
Place of Origin: Guangdong, China
Brand Name: GOORUI
Material: ADC12 Aluminium Alloy
Motor Material: 100% Copper Coil
Frequency: 50/60 Hz
Power Source: Electric Blower
Pressure: High Pressure
Feature: Oil-free, Maintance-free, Low-noise, Low-vibration, Energy-saving
Usage: High suction air and high pressure blowing
Certification: CCC, CE, SGS, TUV, RoHS, ISO, ATEX, UL, certification approved
Customized Support: OEM, ODM

Description

Frequency 50 (Hz) 60 (Hz)
Rated Power 0.4(kW) 0.5(kW)
Rated Voltage   200-240△345-415Y (V) 220-275△380-480Y (V)
Rated Current 2.6△/1.5Y(A) 2.6△/1.5Y (A)
Max Airflow 105 (m3/h) 120 (m3/h)
Max Vacuum -120 (mbar) -150 (mbar)
Max Pressure 130 (mbar) 160 (mbar)
Sound 54 dB(A) 57 dB(A)
Weight 10 (kg) 10 (kg)



GOORUI Side channel blowers are maintenance-free:
·External, permanently lubricated bearings
·Contactless rotating impellers
·Fan-cooled motors

GOORUI Side channel blowers are user-friendly:
·Weight-optimised design through aluminum pressure casting parts
·Possibility for a vertical or horizontal installation
·Suitability for converter operation

GOORUI Side channel blowers are environmentally friendly:
·Oil-free operation
·Low energy requirement
·Low noise emission

GOORUI Side channel blowers can be used world-wide:
·50/60Hz voltage range motors of the Iso class F
·Protection type IP55 with an integrated thermal protection switch (standard)
·CE, TUV, RoHS, CCC and ISO9001 certifications

Our advantages:
·A large selection of sizes
·Extensive accessoires
·100% check prior to delivery
·Spare parts are in stock
·Service in our facilities or on site
·Fast and reliable delivery
