Product Name: Double Stage 3-Phase Ring Blowers and Vacuum Pumps
Model Number: GHBH 5D5 36 2R5
Color: Golden/Silver
Place of Origin: Guangdong, China
Brand Name: GOORUI
Material: ADC12 Aluminium Alloy
Motor Material: 100% Copper Coil
Frequency: 50/60 Hz
Power Source: Electric Blower
Pressure: High Pressure
Feature: Oil-free, Maintance-free, Low-noise, Low-vibration, Energy-saving
Usage: High suction air and high pressure blowing
Certification: CCC, CE, SGS, TUV, RoHS, ISO, ATEX, UL, certification approved
Customized Support: OEM, ODM
GHBH 5D5 36 2R5 4kW(5.5hp) Ring Blowers and Vacuum Pumps
Description
GHBH 5D5 36 2R5 4KW
1 file(s) 456.00 KB
Technical Parameter
| Frequency | 50 (Hz) | 60 (Hz) |
| Rated Power | 4.0 (kW) | 4.6 (kW) |
| Rated Voltage | 345-415△600-690Y (V) | 380-480△660-720Y (V) |
| Rated Current | 9.5△/5.5Y(A) | 9.5△/5.5Y (A) |
| Max Airflow | 230 (m3/h) | 275 (m3/h) |
| Max Vacuum | -390 (mbar) | -410 (mbar) |
| Max Pressure | 440 (mbar) | 480 (mbar) |
| Sound | 72 dB(A) | 74 dB(A) |
| Weight | 43 (kg) | 43 (kg) |

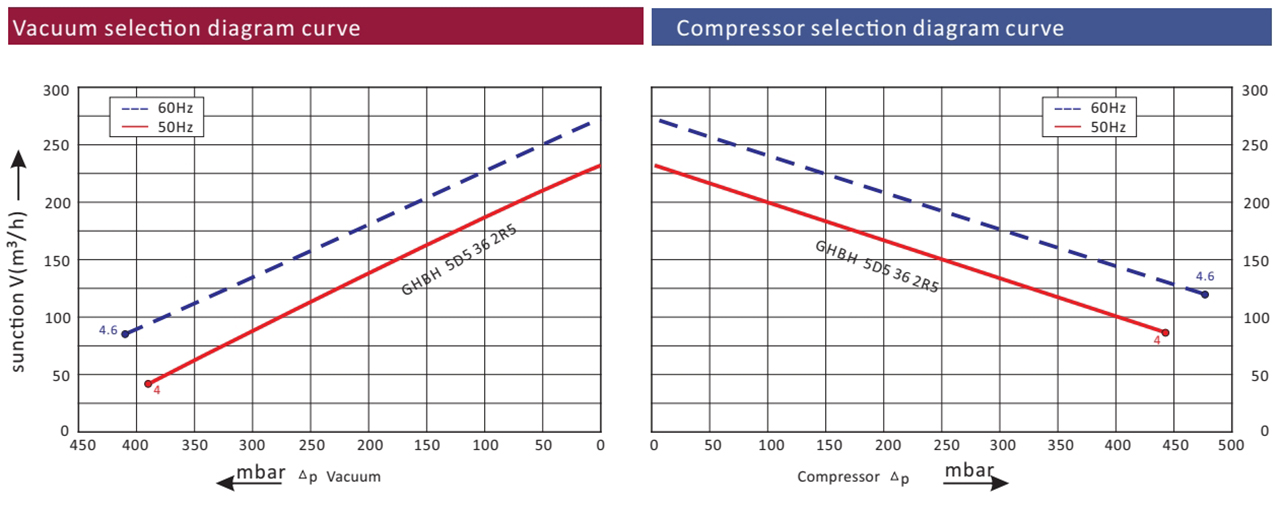

Performance Curves
The above data is obtained based on laboratory testing. Actual applications will have a deviation of ±10% depending on the altitude, air density, humidity, temperature, etc.
Dimensions
GOORUI Side channel blowers are maintenance-free:
·External, permanently lubricated bearings
·Contactless rotating impellers
·Fan-cooled motors
GOORUI Side channel blowers are user-friendly:
· Weight-optimised design through aluminum pressure casting parts
· Possibility for a vertical or horizontal installation
· Suitability for converter operation
GOORUI Side channel blowers are environmentally friendly:
· Oil-free operation
· Low energy requirement
· Low noise emission
GOORUI Side channel blowers can be used world-wide:
· 50/60Hz voltage range motors of the Iso class F
· Protection type IP55 with an integrated thermal protection switch (standard)
· CE, TUV, RoHS, CCC and ISO9001 certifications
Our advantages:
· A large selection of sizes
· Extensive accessoires
· 100% check prior to delivery
· Spare parts are in stock
· Service in our facilities or on site
· Fast and reliable delivery
