Product Name: Single Stage Three Phase Ring Blowers and Vacuum Pumps
Model Number: GHBH 017 36 1R9
Color: Golden/Silver
Place of Origin: Guangdong, China
Brand Name: GOORUI
Material: ADC12 Aluminium Alloy
Motor Material: 100% Copper Coil
Frequency: 50/60 Hz
Power Source: Electric Blower
Pressure: High Pressure
Feature: Oil-free, Maintance-free, Low-noise, Low-vibration, Energy-saving
Usage: High suction air and high pressure blowing
Certification: CCC, CE, SGS, TUV, RoHS, ISO, ATEX, UL, certification approved
Customized Support: OEM, ODM
GHBH 017 36 1R9-IE3 12.5kW(17hp) Ring Channel Blowers and Vacuum Pumps
Description
GHBH 017 36 1R9 12.5KW
1 file(s) 424.90 KB
Technical Parameter
| Frequency | 50 (Hz) | 60 (Hz) |
| Rated Power | 12.5(kW) | 14.5(kW) |
| Rated Voltage | 345-415△600-690Y (V) | 380-480△660-720Y (V) |
| Rated Current | 28.0△/16.2Y(A) | 29.0△/16.7Y (A) |
| Max Airflow | 1050 (m3/h) | 1250 (m3/h) |
| Max Vacuum | -290 (mbar) | -270 (mbar) |
| Max Pressure | 280 (mbar) | 260 (mbar) |
| Sound | 74 dB(A) | 79 dB(A) |
| Weight | 116 (kg) | 116 (kg) |

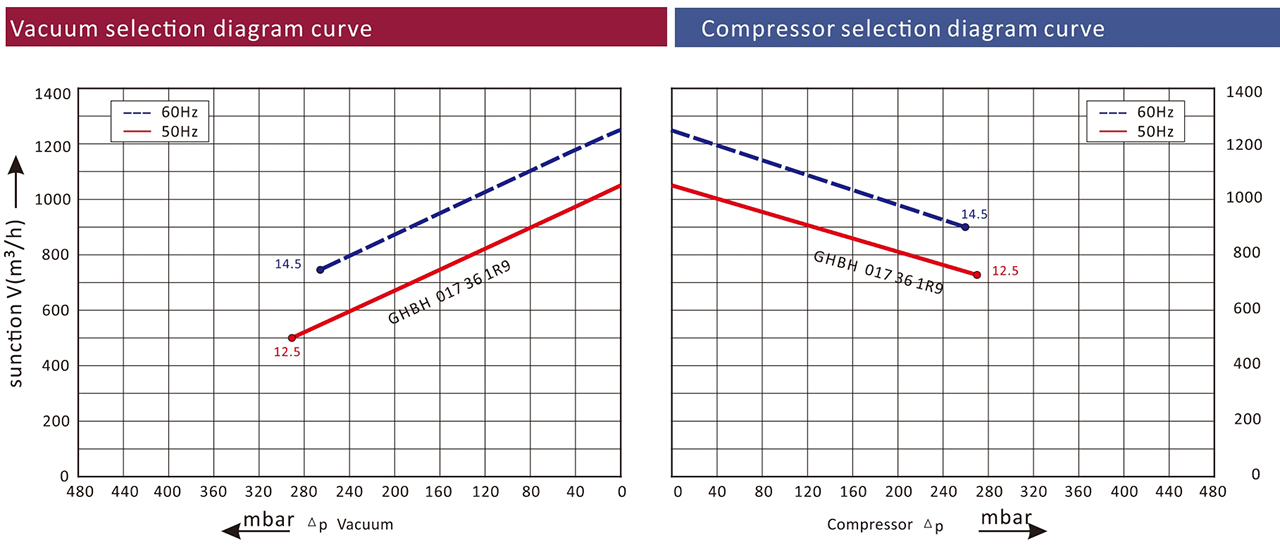

Performance Curves
The above data is obtained based on laboratory testing. Actual applications will have a deviation of ±10% depending on the altitude, air density, humidity, temperature, etc.

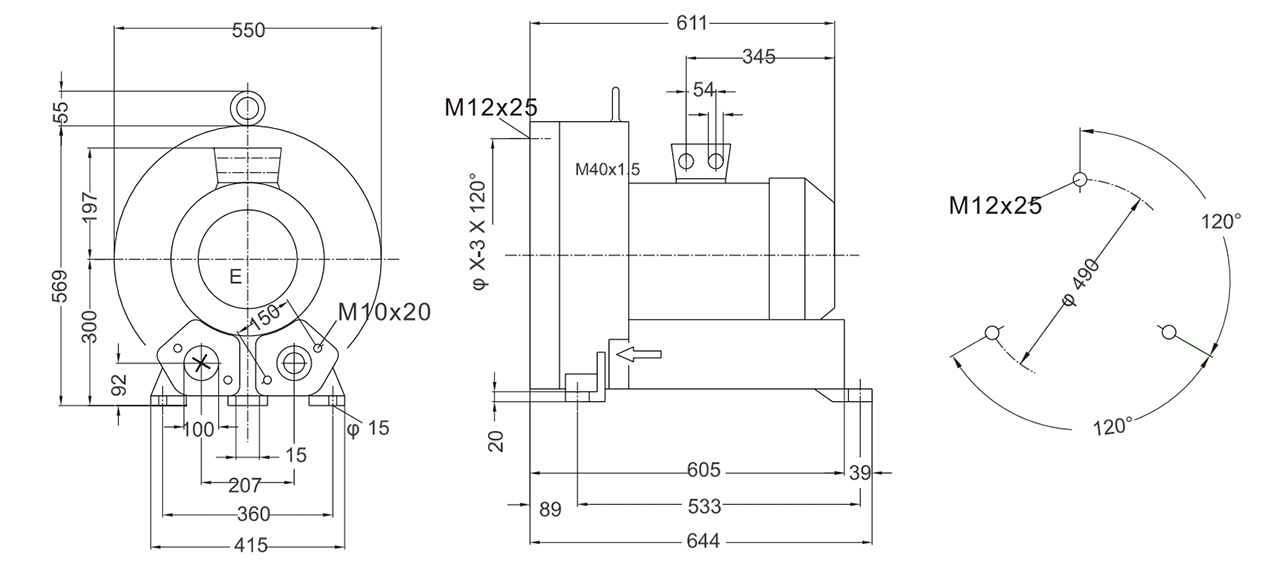

Installation Drawing
Product Features
GOORUI Side channel blowers are maintenance-free:
· External, permanently lubricated bearings
· Contactless rotating impellers
· Fan-cooled motors
GOORUI Side channel blowers are user-friendly:
· Weight-optimised design through aluminum pressure casting parts
· Possibility for a vertical or horizontal installation
· Suitability for converter operation
GOORUI Side channel blowers are environmentally friendly:
· Oil-free operation
· Low energy requirement
· Low noise emission
GOORUI Side channel blowers can be used world-wide:
· 50/60Hz voltage range motors of the Iso class F
· Protection type IP55 with an integrated thermal protection switch (standard)
· CE, TUV, RoHS, CCC and ISO9001 certifications
Our Advantages
· A large selection of sizes
· Extensive accessoires
· 100% check prior to delivery
· Spare parts are in stock
· Service in our facilities or on site
· Fast and reliable delivery
