In industrial air handling, two common choices stand out — Ring Blowers and Roots Blowers. While both are designed to move air or gas for various applications, their working principles, performance characteristics, and maintenance requirements differ significantly.
This guide provides a technical comparison to help you make the right decision.
How They Work
Ring Blower (Regenerative Blower or Side Channel Blower)
A ring blower uses a non-contact impeller and a regenerative air channel to create pressure. As air circulates through the side channels multiple times, pressure builds up steadily, producing a pulsation-free airflow.
Typical Applications: Wastewater aeration, pneumatic conveying, vacuum lifting, aquaculture aeration, packaging machinery.
Roots Blower
A Roots blower uses two counter-rotating lobes to trap and move air from the inlet to the outlet. It produces higher volumes of air at relatively low pressures, but with more pulsation and vibration.
Typical Applications: Bulk material handling, combustion air supply, sewage treatment, large-scale pneumatic conveying.

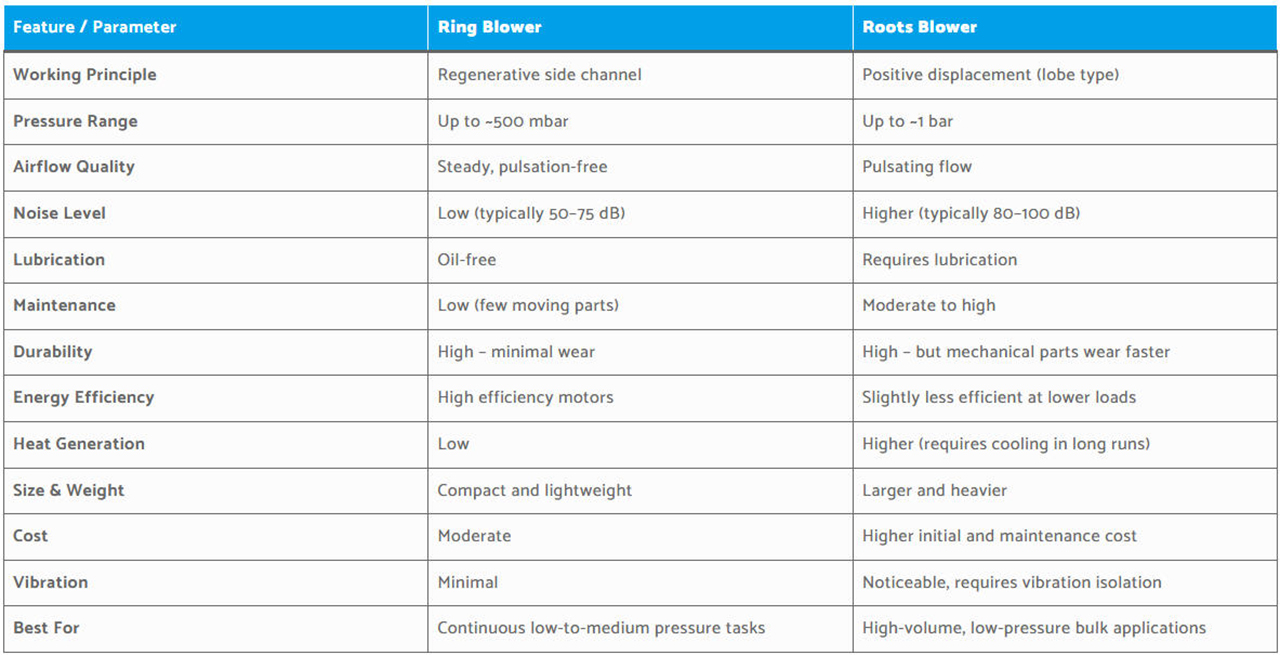

Technical Comparison Table
Pros & Cons
| Ring Blower | Roots Blower |
| Pros: · Oil-free, clean air output · Low noise and vibration · Compact size and easy installation · Low maintenance requirements · Energy efficient · Long service life |
Pros: · Can handle large volumes of air · Capable of higher pressures than ring blowers · Strong and rugged design for heavy-duty tasks |
| Cons: · Lower maximum pressure compared to Roots blower · Not ideal for very high flow rates |
Cons: · Requires regular lubrication and maintenance · Noisier operation with pulsation · Higher power consumption in many cases · Bulkier and heavier |
Conclusion – Why Ring Blower Wins
For most industrial, laboratory, and light-to-medium-duty applications, the Ring Blower is the more practical choice. Its oil-free operation, energy efficiency, and low maintenance make it ideal for businesses that value reliability and cost savings over time.
While Roots blowers still have their place in very high-volume, low-pressure applications, most industries can achieve better performance, lower noise, and reduced operational costs by choosing a Ring Blower.
Recommendation:
For wastewater treatment, pneumatic conveying, aquaculture aeration, and vacuum applications, choose a Ring Blower from a trusted Supplier like us.
Why choose GOORUI blowers？
20+ years of experience in ring blower industry；
High efficiency motor；
IP55 & Insulation class H；
Built-in Thermal Protector(PTC)；
High Temperature-Resistance bearing；
Special customized blower and OEM available；
24 months warranty and long-term technical support；
CCC, CE, SGS, TUV, RoHS, UL, ISO9001 certification approved;
Factory direct sales; ample stock, available immediately;
Goorui blowers are used wherever air or gas (vacuum or pressure) needs to be moved;
High-pressure blowers can be installed horizontally or vertically;
Available in 50Hz and 60Hz models;
High-quality products and competitive prices;
100% tested before each model leaves the factory;
74 Patented multi-purpose ring blowers;
Wide-pressure dual-frequency, globally applicable;
Explosion-proof and corrosion-resistant blowers are available.
