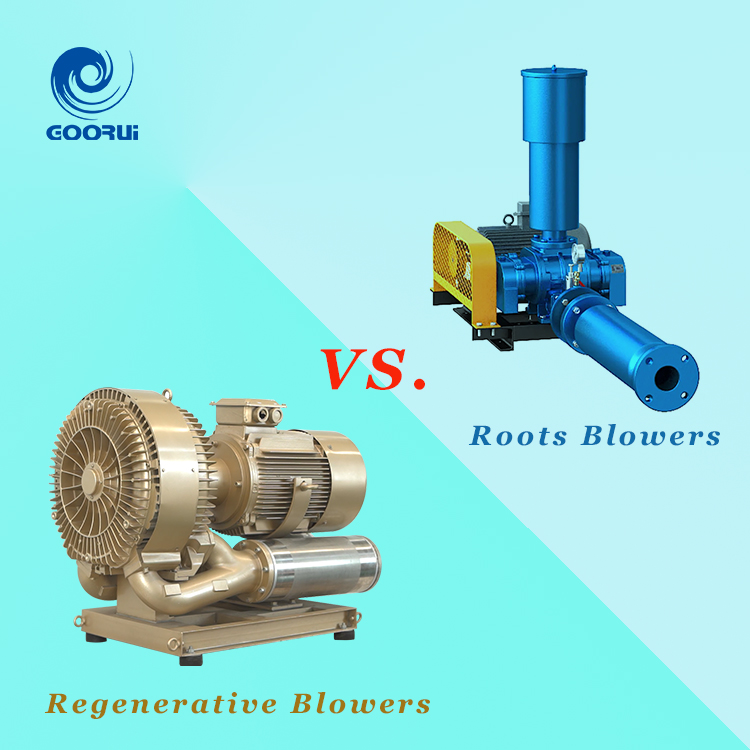

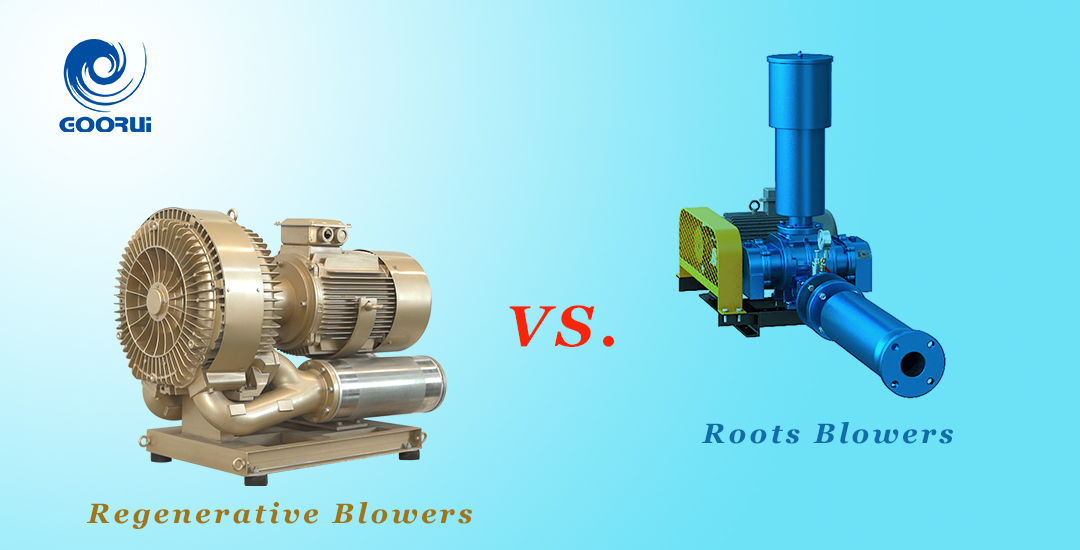

Regenerative Blowers vs. Roots Blowers
How to Choose the Right Air Supply Equipment for Wide Applications
Regenerative blowers (also called ring blowers or side channel blowers) and Roots blowers (also called rotary lobe or positive displacement blowers) differ primarily in how they move air, the pressure they generate, and their ideal industrial applications.
Core Working Mechanisms
• Regenerative Blower (Ring Blower): Uses a single high-speed impeller with multiple blades. As air circulates multiple times through a side channel, centrifugal force builds pressure steadily, producing a smooth, pulsation-free airflow.
• Roots Blower (Lobe Blower): Uses two counter-rotating lobes in a non-contact pumping mechanism to trap and physically push a fixed volume of air from the inlet to the outlet. This positive displacement action causes distinct air pulses and higher vibration.
Performance & Specifications Comparison
| Feature | Regenerative (Ring) Blower | Roots (Rotary Lobe) Blower |
| Airflow Volume (Flow Rate) | Lower to moderate volume, high pressure (or high vacuum) | High total air volume |
| Pressure Capability | Handles moderate pressure/vacuum; flow drops off sharply if back pressure gets too high | Maintains output and handles higher back pressure consistently (typically up to 10–15 psig) |
| Air Quality | 100% oil-free (contactless impeller) | Many models are oil-free, though some heavy-duty belt-driven units use internal lubrication |
| Noise & Vibration | Quiet, low vibration, smooth airflow | Louder operation, noticeable pulsation and vibration |
| Maintenance | Virtually maintenance-free (only bearings wear out; can run up to 40,000 hours) | Requires periodic maintenance, checking oil/belts, and monitoring clearances |
| Size & Weight | Compact, lightweight, direct-drive | Heavier, bulkier, often requires belt-drive or larger foot-print |
Best Applications
Choose a Regenerative Blower When:
• You need clean, oil-free, pulsation-free air for light-to-medium-duty operations.
• Your application involves vacuum lifting, packaging machinery, printing, air knives, or small-scale aquaculture/biofloc aeration.
• You have limited indoor space and require a quiet, compact, low-maintenance unit.
Choose a Roots Blower When:
• You need large total volumes of air and high continuous-duty reliability.
• Your system features deep water diffusers, long pipeline runs, or heavy back pressure where a ring blower would lose flow.
• You are running municipal wastewater treatment, heavy pneumatic conveying (moving grain, cement, or powder), or large commercial fish/shrimp farms.
If you’d like to narrow down which one fits your project, tell me:
• What is the specific application (e.g., wastewater, pneumatic transport, vacuum hold-down)?
• What approximate airflow (CFM or m³/h) or pressure/vacuum level do you need?
