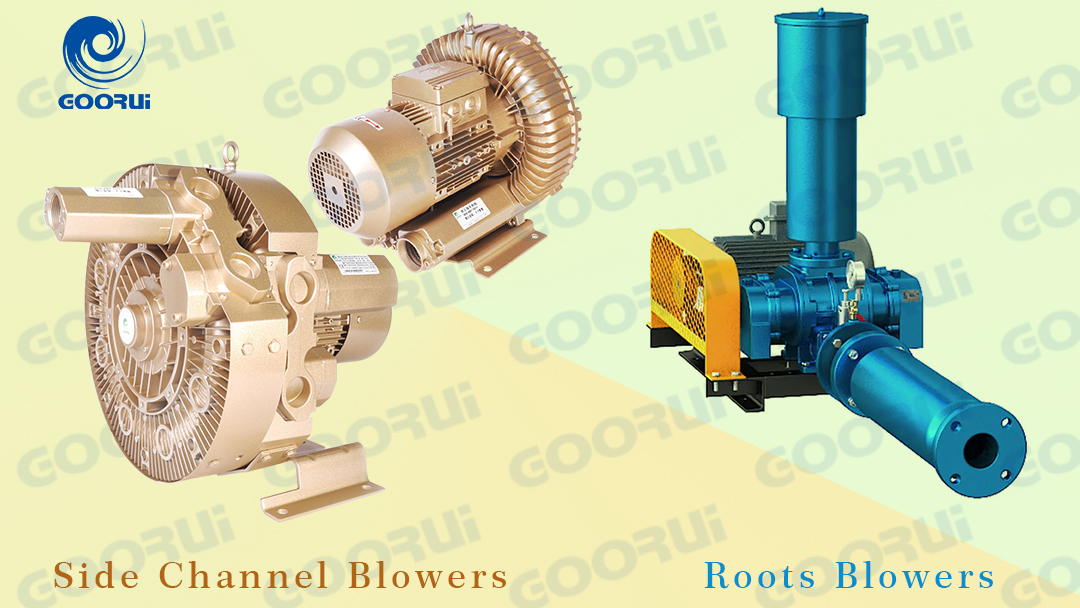

Side channel blowers (also known as ring or regenerative blowers) and Roots blowers (positive displacement blowers) differ primarily in their working principles, pressure capabilities, and ideal use cases.
Key Differences at a Glance
| Feature | Side Channel Blower | Roots Blower |
| Type | Dynamic machine (regenerative impeller) | Positive displacement machine (twin counter-rotating lobes) |
| Airflow Behavior | Airflow drops significantly as back-pressure/resistance increases | Delivers a steady, constant volume of air regardless of pressure changes |
| Pressure / Vacuum | Best for moderate pressure/vacuum (typically up to ~300 to 1,000 mbar) | Handles higher resistance, deep immersion, and heavy loads |
| Noise & Vibration | Very quiet, smooth, and near vibration-free | Louder operation; often requires acoustic enclosures or dampening |
| Oil & Lubrication | 100% oil-free | Often requires gear oil lubrication (though air path stays oil-free) |
| Maintenance | Extremely low maintenance (no belts or gear oil to change) | Requires periodic checks of gear oil, belts, and filters |
Detailed Comparison
1. Working Principle
• Side Channel Blower: Uses a high-speed rotating impeller with peripheral blades. Centrifugal force spins the gas repeatedly through a side channel, progressively adding energy and pressure with each pass.
• Roots Blower: Uses two intermeshing, counter-rotating three-lobe rotors synchronized by gears. It traps a fixed volume of gas in the rotor cavities and pushes it directly to the discharge port with every rotation.
2. Performance Under Load (Back-Pressure)
• Side Channel Blower: Loses airflow quickly when system resistance or back-pressure rises (such as long pipelines or deep water). If pushed past its limits, it can overheat and lose efficiency.
• Roots Blower: Maintains consistent, heavy-duty output even when facing high resistance or deep-water diffusers.
| Side Channel Blower | Roots Blower |
|
• Packaging & Printing (vacuum hold-down, paper feeding)
• Light Aquaculture (small fish ponds, shallow aeration)
• Small-Bore Conveying or light vacuum lifting
• Environments where low noise and compact size are mandatory
|
• Wastewater Treatment (large municipal or industrial aeration tanks running 24/7)
• Pneumatic Conveying (moving bulk grain, powders, or pellets over long distances)
• Cement & Power Plants or heavy chemical processing
|
• What specific application or process you are working on?
• Your required airflow volume (CFM or m³/h) and pressure/vacuum level?
I can help you determine which type fits your setup best.
